BACnet Integration Level Device

BACnet Web Embedded F.C.U Controller

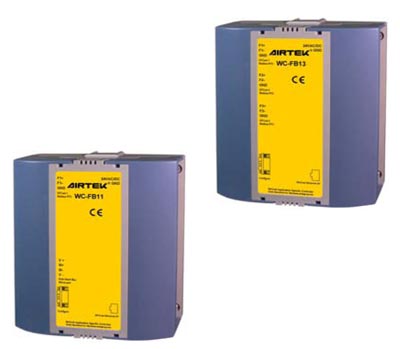

WC-FB is a B-AAC class BACnet LAN communication integration controller.

Description

WC-FB is a B-AAC class BACnet LAN communication integration controller. It has a Router function, Stand alone, and Web Embedded operation system. It is possible to remote control fan coil units in another building.

Users can monitor and control each individual FCU or a group of fan coil units through an internet browser. Control functions include Start/Stop, Temperature Setting, Fan Speed Setting, Scheduled On/Off etc. The user can monitor temperature, fan speed, and system status remotely. The WC-FB has a BACnet Ethernet port which enables information to be passed to the BACnet Management level.



Features

  • Conforms with BACnet MS/TP, BACnet Ethernet ISO-8802-2, BACnet/IP protocol formulated by ASHRAE, fully compatible with any BACnet system.
  • 32-bit high performance MCU, frequency 180MHz.
  • 64MB SDRAM and 16MB memory for program. Maximum 2GB memory SD Card selectable.
  • One 1000VDC electrical isolated protected MODBUS RTU RS-485, it can connect up to 32 DFC or DT AHU Controller with
    transmission speed up to 76,800bps, 1200M
  • One MODBUS RTU Slave mode MSnet port for user interface devices which will work with control panel DSP20U.
  • Web pages Embedded in operation system hardware. (WebKit software is provided for webpage edit). Web page can be plain text or graphic floor plan.
  • 12 control group can be set up with a unique password for each group. Each group can set four time actions for each day in a week. These time action includes Start, Stop, Force Start, Force Stop, Start Energy Saving, Stop Energy Saving.
  • Passwords include, System, Area, and Group passwords. Each of these 12 Group has its own unique password. This security system prevents unauthorided operation.
  • On-line editing, downloadable logic program as well as real-time program debugging function.
  • Operation functions include proportional, integration, differential, floating, logic, mathematic, and subroutine etc
  • Real-time clock, 10 Calendars, 100 Schedules, 10 Notification Class, 100 Event Enrollments, standard BACnet object. Schedules and event enrollments support external object access function.

View more detailed specifications (PDF). View PDF
