MSC20S

Monitors and control equipment

One-to-one LCD fan operation panel

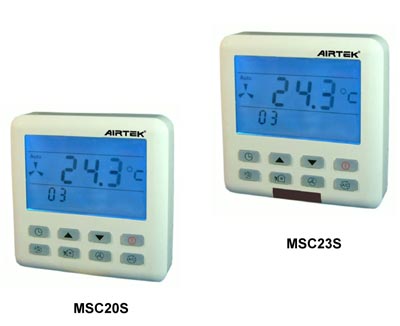

MSC20S series one to one LCD fan coil unit control panel is a special-purpose field operation man-machine interface.

Description

MSC20S series one to one LCD fan coil unit control panel is a special-purpose field operation man-machine interface. It has a large-scale graphic LCD with back light. It may facilitate the user to examine, setting, change and confirm each kind of control parameter value. For example the indoor temperature value, temperature setting, air condition mode, wind speed, off timer and alarm messages.

Features

  • 16 bit microprocessor, high precise operation.
  • Two-wire communication network, Easy for wiring.
  • Large-scale LCD is good for display temperature value, setting value, fan speed, air conditioning mode and abnormal state.
  • LCD with the back light illumination may facilitate to operate at night.
  • Selectable air condition running mode: automatic, cooling, heating and fan.
  • Selectable fan speed: automatic, high, medium and low speed.
  • Energy saving function, periodically start/stop for energy saving.
  • Comfortable function, timely shift temperature setting while sleep.
  • Has the 0~24 hour power off timer, may facilitate the overtime work situation.
  • Flash memory design, keep memorize for more than ten years without power.
  • Included self wakeup function (Watch Dog) when software is down.
  • Key lock function to prevent unauthorized operation.



View more detailed specifications (PDF). View PDF
